Products
|
|
|




|

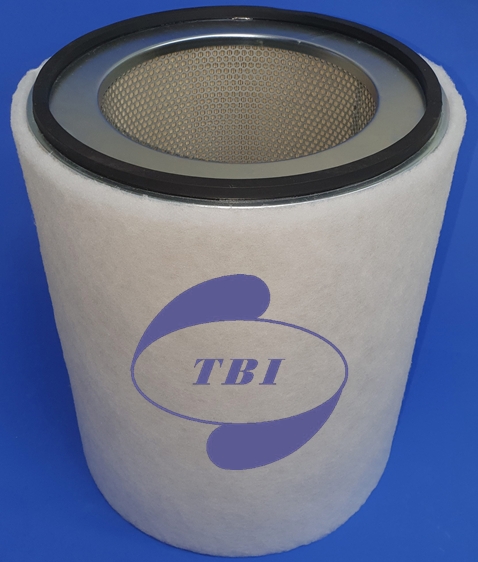

Inlet Filter ( Round Type)
|
TB-Q71005
|
Size
|
OD390xL500mm with gasket with gasket |
|
Efficiency
|
99.5% (>2㎛)
|
|
Media
|
Synthetic Fiber
|
|
Frame
|
Steel, Coated
|
|
Initial △p
|
under 20mbar
|
|
Final △p
|
under 45mbar
|
|
Air Flow
|
5000 CMH
|
|
Weight
|
7.5kg
|
|
Round type inlet filter for
Turbo Compressor.
Size can be
customized.
|
|
.jpg)

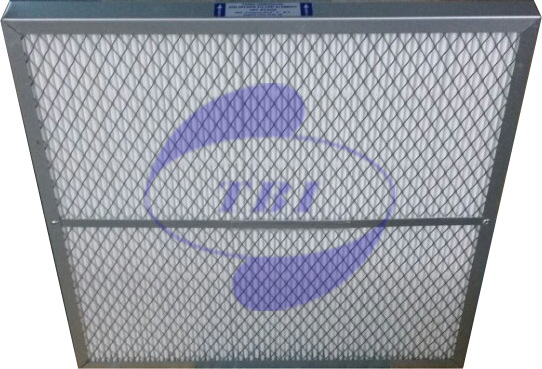

Inlet Filter, 1st stage
|
Model No.
|
Specifications
|
|
T5110034/TB
|
Size
|
600x600x40㎜
|
Efficiency
|
98% (>10㎛)
|
Media
|
Synthetic Fiber
|
Frame
|
Galvanzed Steel
|
Initial △p
|
Under 8㎜H2O(Aq) |
Final △p
|
200㎜H2O under with 2nd stage Filter |
Air Flow
|
2500 CFM (4200m3/hr)
|
| Weight
|
3㎏
|
| Other |
Gasket, Front side
|
|
Inlet Filter, 1st stage
|
Model No.
|
Specifications
|
|
QA-2424-301
(5929-0101-10/TB)
|
Size
|
595x595x40㎜
|
| Efficiency
|
98% (>10㎛)
|
| Media
|
Synthetic Fiber
|
| Frame
|
Galvanzed Steel
|
| Initial △p
|
Under 8㎜H2O(Aq) |
| Final △p
|
200㎜H2O under with 2nd stage Filter |
| Air Flow
|
2500 CFM (4200m3/hr)
|
|
Weight
|
3㎏
|
| Other |
Washable
|
|
Inlet Filter, 2st stage
|
Model No.
|
Specifications
|
|
QA-2424-201
|
Size
|
595x595x305㎜ with gaskets, both side |
Efficiency
|
99% (>2㎛)
|
Media
|
Glass Fiber(3Layer)
|
Frame
|
Galvanzed Steel
|
Initial △p
|
30㎜H2O under with 1st stage Filter |
Final △p
|
200㎜H2O under with 1st stage Filter |
Air Flow
|
2500 CFM
|
|
Weight
|
11.5㎏
|
|
Other
|
Rivet assembled
|
|
.jpg)

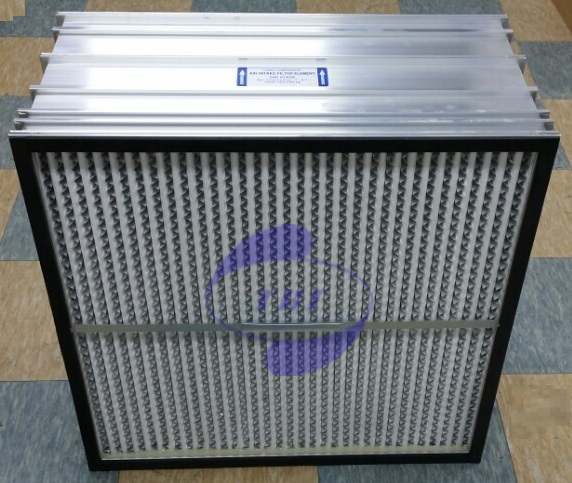

Inlet Filter, 2nd stage
|
Model No.
|
Specifications
|
|
T5110035/TB
|
Size
|
600x600x295
|
Efficiency
|
99.97%(>2㎛) |
Media
|
Glass Fiber (main) (3Layers)
|
Frame
|
Aluminum Extrusion |
Initial △p
|
Under 25㎜H2O(Aq) |
Final △p
|
200㎜H2O under with 1st stage Filter |
Air Flow
|
2500 CFM (4200m3/hr) |
Weight
|
9㎏ |
| Others
|
Self-lock pin assembled & more long life |
|
Inlet Filter, 2nd stage
|
Model No.
|
Specifications
|
|
QA-2424-401
(5929-0101-20/TB)
|
Size
|
595x595x290 (595x595x303㎜ with Gasket, both side)
|
Efficiency
|
99%(>2㎛) |
Media
|
Glass Fiber (main) (3Layers)
|
Frame
|
Aluminum Extrusion |
Initial △p
|
Under 25㎜H2O(Aq) |
Final △p
|
200㎜H2O under with 1st stage Filter |
Air Flow
|
2500 CFM (4200m3/hr) |
| Weight
|
9㎏ |
|
Others
|
Self-lock pin assembled & more long life |
|
* TB-Q71005 : Air inlet filter for Turbo ( centrifugal ) & Screw Compressors.
* QA-2424-301 : Air inlet filter, 1st stage for Turbo ( centrifugal ) Compressors.
* QA-2424-201 & QA-2424-401 : Air inlet filters, 2nd stage for Turbo ( centrifugal ) Compressors.
* QA-2424-401 can be interchangeably used with QA-2424-201.
* Special sizes and features can be customized.
|
|
Inlet Filter, 1st stage, Long
|
Model No.
|
Specifications
|
|
QA-2424-301L
|
Size
|
850x495x40㎜
|
Efficiency
|
2㎛
|
Media
|
Synthetic Fiber
|
Frame
|
Galvanzed Steel
|
Initial △p
|
5~10㎜H2O
|
Final △p
|
200㎜H2O with 1st Filter |
Air Flow
|
2500 CFM
|
Weight
|
4㎏
|
|
Others
|
Self-Lock pin Assembled & more long life
|
|
Inlet Filter, 2nd stage, Long
|
Model No.
|
Specifications
|
|
QA-2424-401L
|
Size
|
850x495x303㎜
|
Efficiency
|
99% (>2㎛)
|
Media
|
Glass Fiber (main) (3Layer)
|
Frame
|
Aluminum Extrusionl
|
Initial △p
|
30㎜H2O under with 1st stage Filter
|
Final △p
|
200㎜H2O under with 1st stage Filter
|
Air Flow
|
3000 CFM
|
Weight
|
13.5㎏
|
|
Others
|
Self-Lock pin Assembled & more long life |
|
The filtes designed for more air
flow.
* QA-2424-301L : Air inlet filter, 1st stage for Turbo ( centrifugal ) Compressors.
* QA-2424-401L : Air inlet filters, 2nd stage for Turbo ( centrifugal ) Compressors.
* Special sizes and features can be customized.
|
